• Product Features The door can be opened with a card. The door can be opened with a card fit for support standard as well as a card contained in the product (Support for the ISO14443A-Type, Up to 70 including the password can be registered). The door can also be opened with a password. • Table of Contents Product Features Safety Cautions Notes before Operation Product Components.7 Outdoor Unit Parts.8 Indoor Unit Parts. 9 Replacing the Batteries.10 Using the Emergency Battery.11 Setting the Left Hand/Right Hand.12 Basic Functions Initialization (Master Password, Password and Card).13 Master Password Registration and Change.14 Password Registration.15. • Additional Functions Double Security Mode Setting.23 Automatic/Manual Locking Setting.24 Sound Setting and Releasing.25 Alarm Sound/Emergency Sound.26 Troubleshooting Operating Method Summary Product Specifications User Code Registration Table.

If this document matches the user guide, instructions manual or user manual, feature sets, schematics you are looking for, download it now. Lastmanuals provides you a fast and easy access to the user manual SAMSUNG EZON SHS-1320.

• Safety Cautions This section contains important information to ensure the user's safety and prevent potential damage to property. Please read this section carefully and use the product accordingly. Warning, Caution and Note Explained: Warning Information given under this heading is information the user must be aware of to prevent physical harm. • Cautions during Installation The user shall not install or repair Do not install the product in the the product without authorization. Place where the gap between The manufacturer does not assume the door and the frame is 5mm the responsibility for damage to the or more. • Cautions during Repair or Maintenance Be sure to correctly match the Replace all batteries immediately poles (+/-) when installing the after they run out of power, and batteries. This type of thinking could do us in review. Install the batteries with never mix new batteries with the correct poles (+/-).

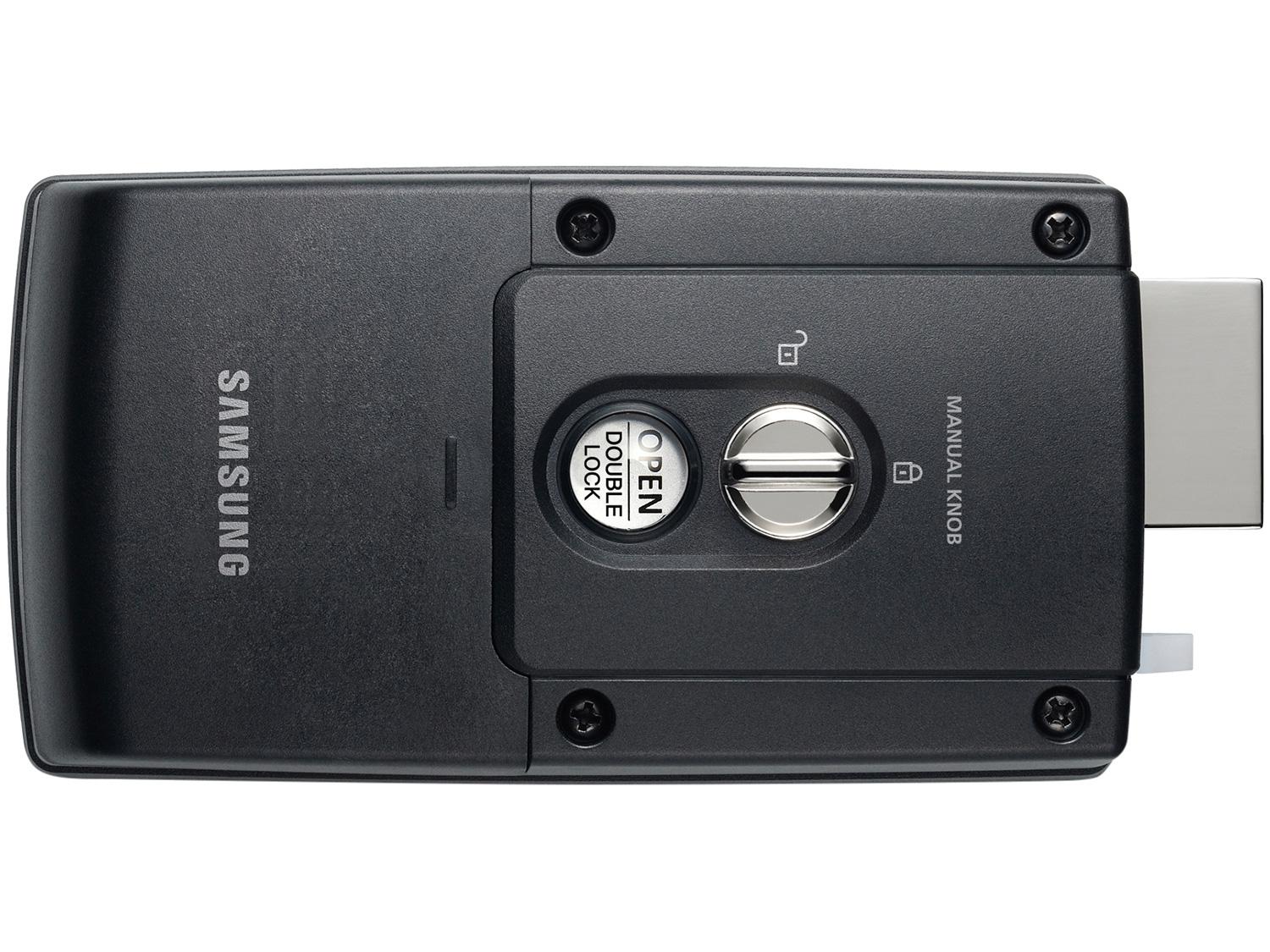

• Notes before Operation Product Components Turn Shaft Deadbolt Indoor Unit Support Panel Outdoor Unit 'AA' Batteries (LR6) Magnet Strike Card User Guide Screw Quantity Description FH+ M5 x 20 Out Housing + Plate In Fastening OH+ M4 x 22 Out Housing + Deadbolt + Plate In Fastening FH+ T4 x 25 Plate In + Wooden Door Fastening FH+ M3 x 6. • Outdoor Unit Parts Number Pad Turned On Number Pad Turned Off [Wake Up] Number Pad Button Touch Display Lamp [Wake-up] Button Card Reader External Power Contact Name Description This is used to enter the numbers when registering, changing Number Pad or deleting the password. • Indoor Unit Parts Battery Cover Battery Holder [OPEN] Button [CARD] Button Manual Switchgear [SET] Button Magnetic Sensor Name Description This is one touch button used to open the locked door. (It is also [OPEN] Button used to lock the door from indoor in manual locking mode) The Manual Switchgear is used to open or lock the door when Manual Swichgear the batteries are completely discharged.

• Replacing the Batteries 1. Battery Replacement Alarm Generation If the melody of 'Blues for Elise' sounds Melody when opening the door using the password or a card, it is time to replace the batteries. Battery Life Although actual battery life differs depending on the manufacturer, date of production and operation environment, four 1.5V AA alkaline batteries can last for one year, based on an average of 10 uses per day.

• Using the Emergency Battery 1. When Lock Fails to Operate Due to Discharged AA Batteries If the batteries are not replaced after their replacement time comes, they will be completely discharged and the door lock will not operate.

Recognition of a Card Password Entry The door is not opened. • Setting the Left Hand/Right Hand The opening or locking direction may change depending on the location in which the unit is installed. Adjust the [Left Hand/Right Hand] switch according to the location of the outdoor unit before installing the indoor unit. Left Hand Setting Set the switch to 2. • Basic Functions This section describes the ways to initialize the information registered in the door lock, to register the password and card data, and to open or close the door. Initialization (Master Password, Password and Card) All registered data (master password, password and card) are deleted.
